SYNERGIC MULTIPROCESS INVERTER PULSE EQUIPMENT WITH SEPARATE WIRE FEEDER

QUBOX and QUBOX PULSE series multiprocess equipment are characterized by a synergic digital control and inverter technology integrated into a sturdy and functional metallic structure, with a separate wire feeder. Technologically advanced, robust and easy-to-use, they allow high quality welding in MMA, TIG with “Lift” mode, MIG-MAG and with the QUBOX PULSE models, also in PULSED MIG.

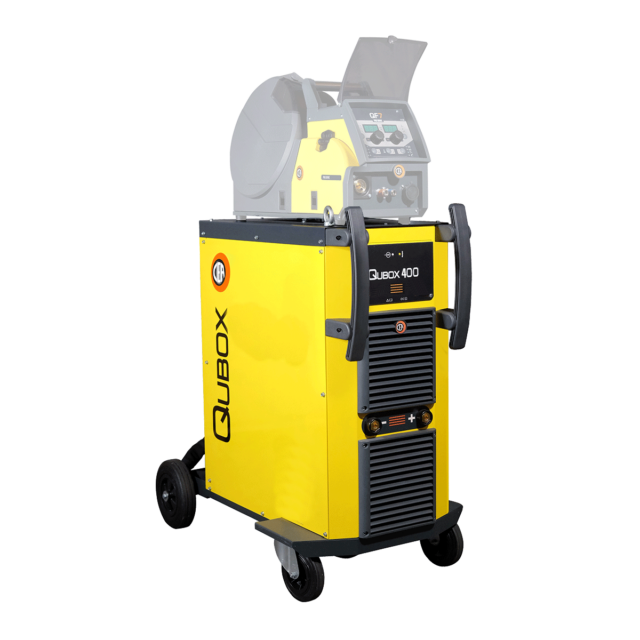

QUBOX

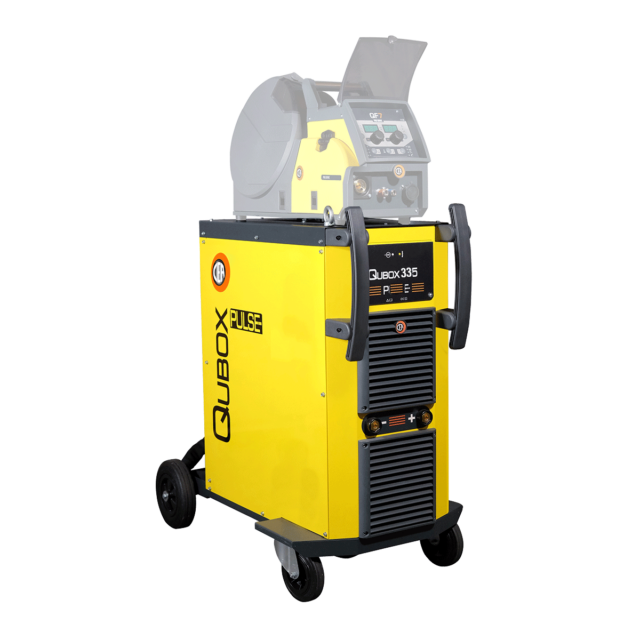

QUBOX PULSE

Full synergic control

The intuitive interface will all to less experienced operators to easily operate QUBOX and QUBOX PULSED equipment with a user-friendly welding parameters adjustment process. Once the wished program has been selected, the welding control automatically sets the best parameters based on the material type, wire diameter and gas being
used.

Professional and strong

QUBOX and QUBOX PULSE are the best choice in all industrial fields for all qualified applications requiring high precision and repeatability of the welding results, such as medium and large fabrication work, shipyards and steel erection.

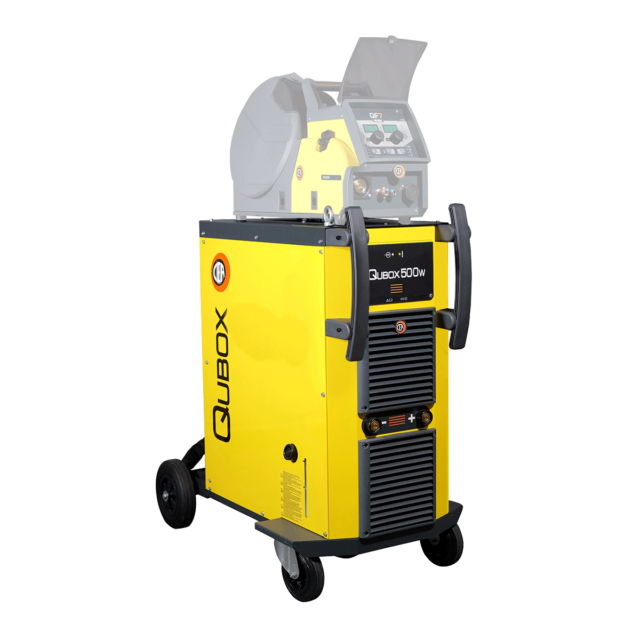

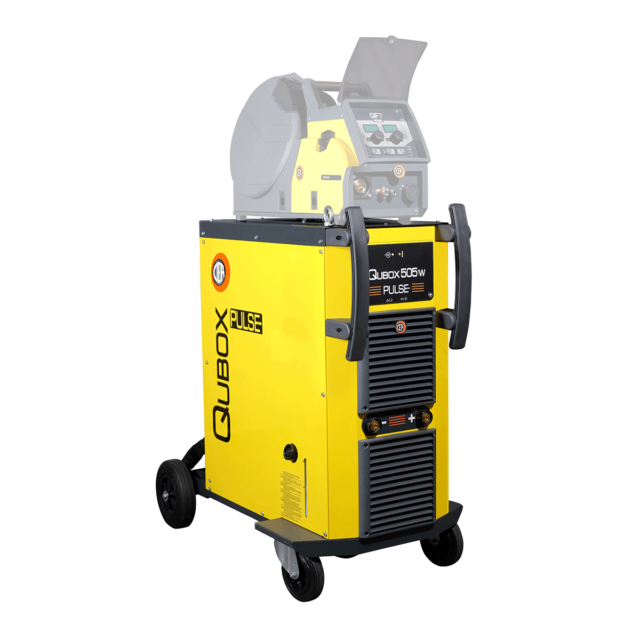

QUBOX W and QUBOX W PULSE power sources are fitted with integrated cooling equipment.

Other characteristics

Digital control of the welding parameters with synergic curves preset
“Smart PROGRAM” key for quickly selecting any program
“Energy saving” to operate the power source cooling fan and torch water cooling only when necessary
Excellent arc striking
Ability to partially or totally lock the equipment with access key by password
Initial and final crater control
Water cooling equipment integrated into the power source (W version)

Technical features

QUBOX/QUBOX PULSE PREMIUM

QUBOX and QUBOX PULSE models are available in: STANDARD configurations, designed for the most used welding applications, and PREMIUM, equipped with the innovative special welding MIG processes of CEA and ECP.

PREMIUM VERSION

vision.COLD – vision.ULTRASPEED – vision.POWER

E.C.P.

Extra curve package

ON DEMAND

vision.PIPE

SIMPLE AUTOMATION

CEA power sources are standard equipped with analogic-digital I/O. This allows to integrate very easily the power source into an automated welding equipment without any expensive and sophisticated external interfaces, usually necessarily supplied for robotics.

vision.ARC

Thanks to vision.ARC, the electric arc is monitored continuously by the microprocessor which manages the welding process in real time: all the parameters are processed and modified by the control that digitally manages the short circuits of MIG-MAG, keeping the arc stable and precise despite any change of the external conditions. The welding process is always under control from arc striking, by Wire Start Control (WSC), to when the arc is interrupted by Burn-Back Control.

vision.PULSE

vision.PULSE allows a constantly controlled short arc pulse welding, by optimizing the results of traditional pulse welding.

This enables to reduce the high heat input, typical in pulse welding, with a consequent reduction in distortions, an improvement off the puddle and considerable increase in welding speed too.

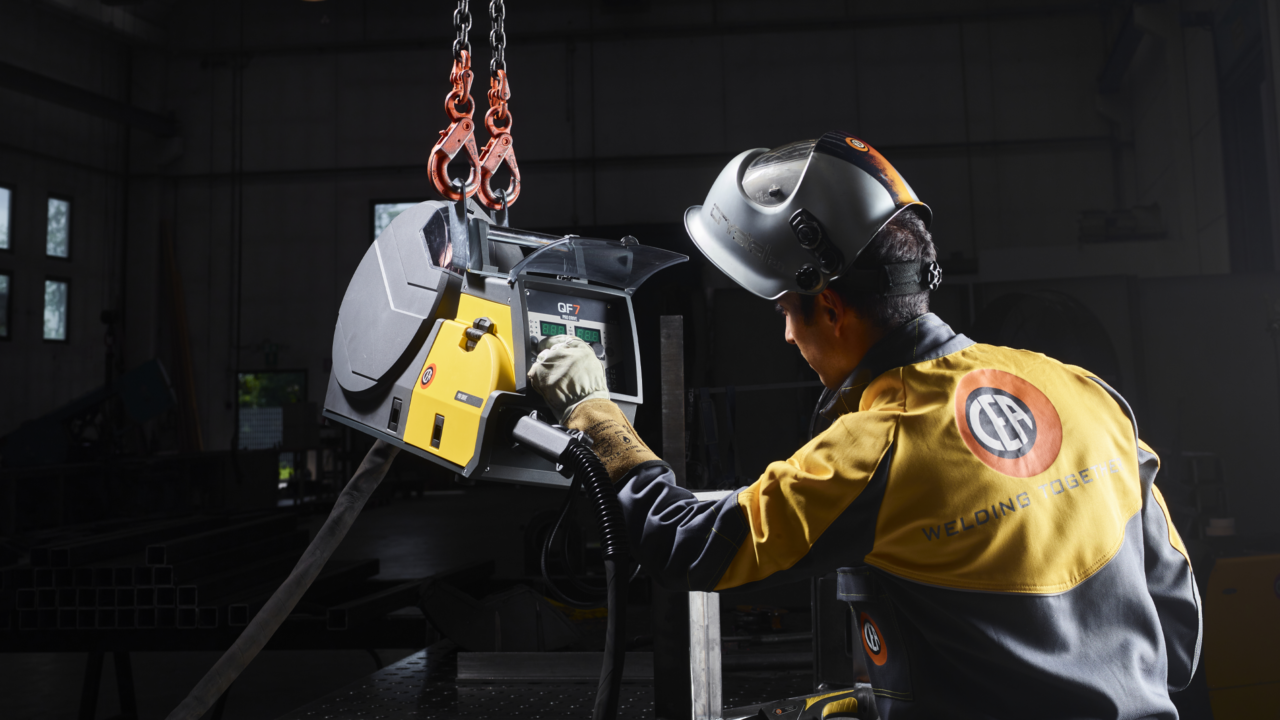

WIRE FEEDER QF7 W PRO DRIVE

STRONG INDUSTRIAL CASE made to last
PROFESSIONAL WIRE FEEDING mechanism with 4 rolls of large diameter for a precise and constant wire driving
DOUBLE GROOVE ROLLS replaceable without any tool
LODGING FOR WIRE SPOOLS up to Ø 300 mm
LED LIGHT in the feeder compartment INSPECTION WINDOWS in the spool cover HK1 Hanging Kit (optional)
LONG INTERCONNECTING CABLE are available for QUBOX equipment in the air cooled version over 50 m

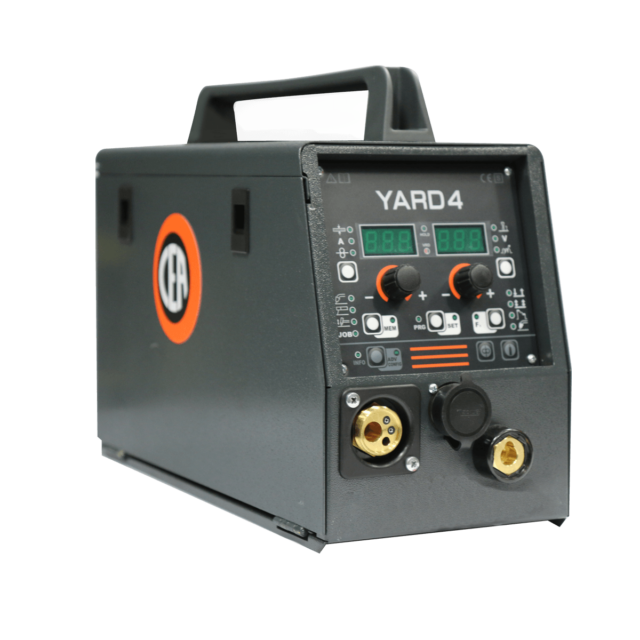

WIRE FEEDER YARD 4

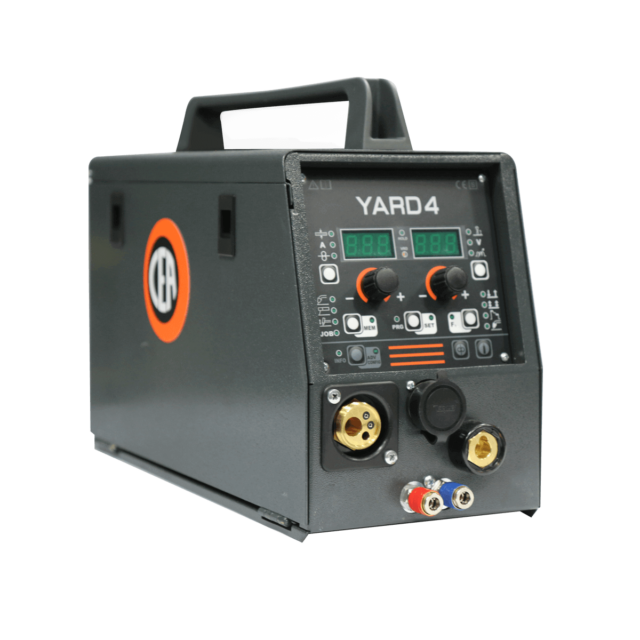

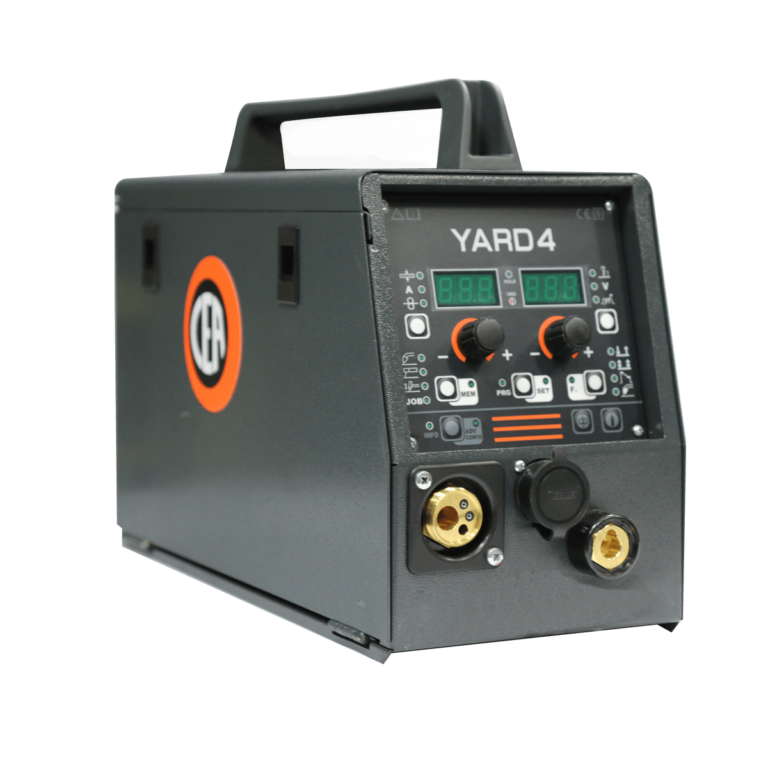

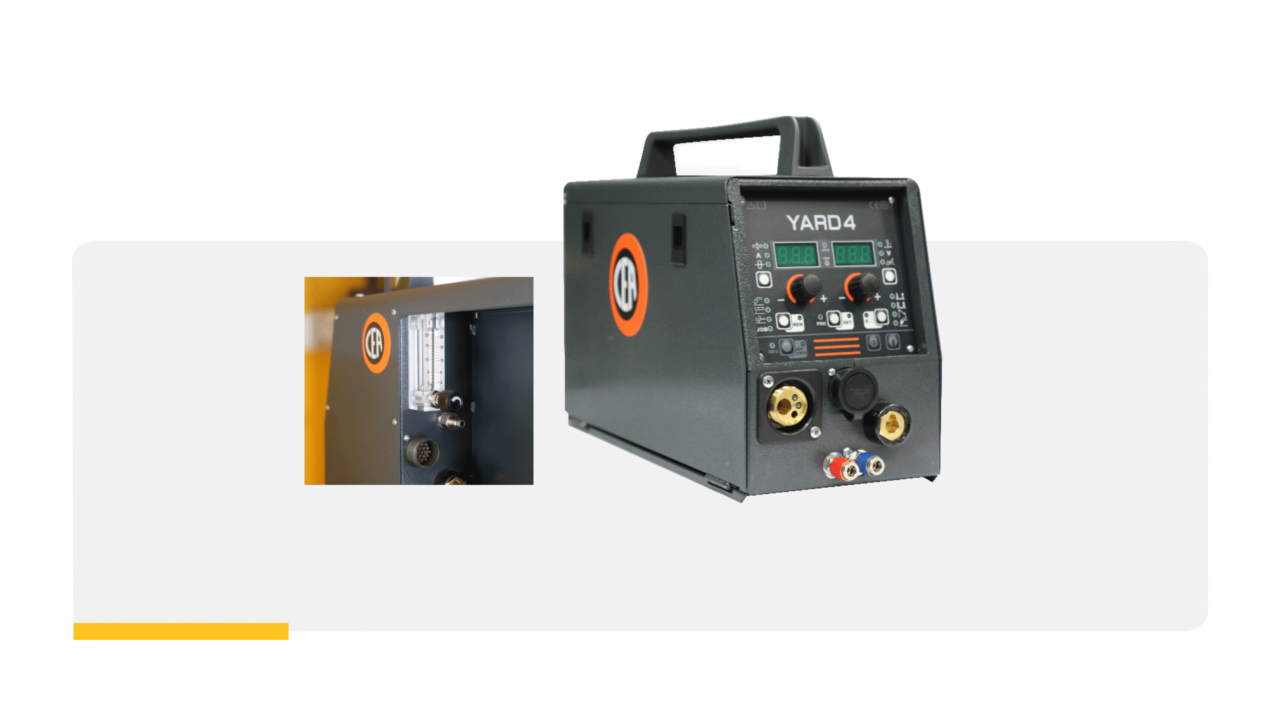

This compact and light wire feeder (11,5 Kg only), studied for Ø 200 mm wire spools, with flowmeter and complete control of the parameters on its panel, represents the ideal solution for shipyards and offshore welding applications.

FSC - Fast Start Control

It is the innovative arc striking control that reduces drastically the ignition time. By this new technology it is possible to have a quick and perfect ignition at every start.

This is ideal for spot-welding and pre-assembly of components.

SPECIAL 4 STROKE

It is the special time-saving feature in any welding. Every welder who welds in 4-stroke can quickly prepare the workpiece to be welded by making a perfect weld point without changing any adjustments. By simply pressing the torch trigger for less than a second, you can use the 2-stroke function, even if the welder is set to 4-stroke. Maintaining the same settings, it is sufficient to press the torch trigger for more than a second and the welding equipment works automatically in 4-stroke.

Available accessories

Discover all available accessories

Configurator

Wire Feeder QF 7 W PRO DRIVE

Wire Feeder QF 7 W PRO DRIVE w.4 rolls (Ø: 1,0/1,2)

WK 4 standard wheels kit

WK 4 standard wheels kit for MF 4, MF4 yard and QF 7 W PRO DRIVE feeder

WK 2 extra-large wheel kit

HK 1 Hanging Kit

HK 1 Hanging Kit for wire feeder

Wire Feeder YARD 4

Wire Feeder YARD 4 with A/V and Flowmeter 4 rolls (Ø: 1,0 / 1,2) Air cooled version

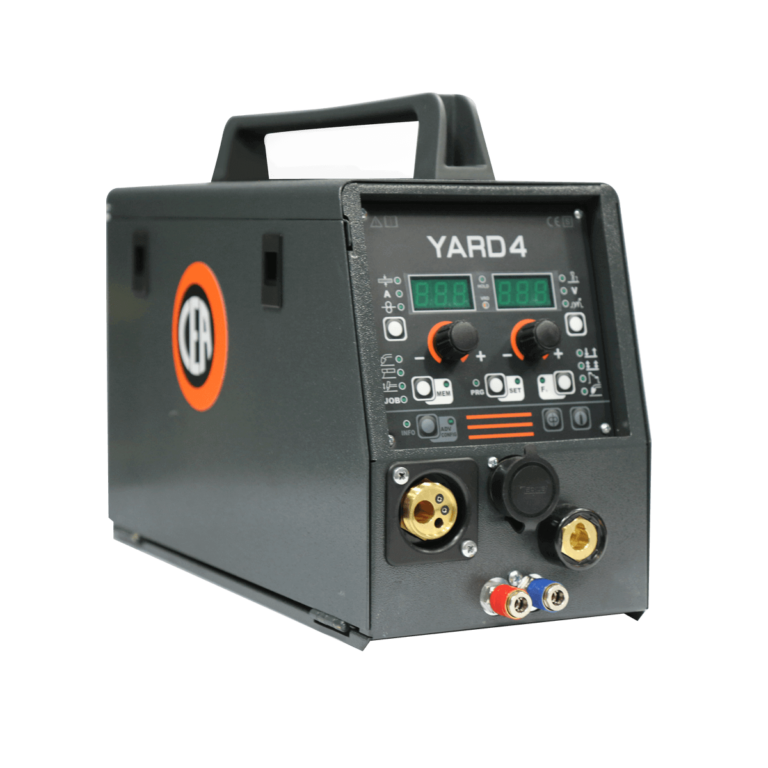

Wire Feeder YARD 4 W

Wire Feeder YARD 4 W with A/V and Flowmeter 4 rolls (Ø: 1,0 / 1,2) Water cooled version

INTERCONNECTING CABLE 1,2 m AIR

1,2 m Air cooled Interconnecting cable Power source-Wire feeder

INTERCONNECTING CABLE 5 m AIR

5 m Air cooled Interconnecting cable Power source-Wire feeder

INTERCONNECTING CABLE 10 m AIR

10 m Air cooled Interconnecting cable Power source-Wire feeder

INTERCONNECTING CABLE 1,2 m WATER

1,2 m Water cooled Interconnecting cable Power source-Wire feeder

INTERCONNECTING CABLE 5 m WATER

5 m Water cooled Interconnecting cable Power source-Wire feeder

INTERCONNECTING CABLE 10 m WATER

10 m Water cooled Interconnecting cable Power source-Wire feeder

CEA Torch CX 353/4

CEA Torch CX 353/4 4 m wire Ø 0.8÷1.2 CO2 340A @60% / Mix 290A @60%

CEA Torch CX 451/4

CEA Torch CX 451/4 4 m wire Ø 0.8÷1.6 CO2 400A @60% / Mix 300A @60%

CEA Torch CXH 302/4

CEA Torch CXH 302/4 4 m wire Ø 0.8÷1.2 water cooled CO2 300A @100% / Mix 250A @100%

CEA Torch CXH 402/4

CEA Torch CXH 402/4 4 m wire Ø 0.8÷1.6 water cooled CO2 500A @100% / Mix 450A @100%

CEA Torch CX 353/4 Up/Down-17p

CEA Torch CX 353/4 Up/Down-17p 4m – wire: Ø 0,8÷1.2 – CO2 340A @60% / Mix 290A @60%

CEA Torch CXH 402/4 Up/Down-17p

CEA Torch CXH 402/4 Up/Down-17p 4m – wire: Ø 0,8÷1.6 – CO2 500A @ 100% / Mix 450A @100%

CEA Digitorch DX 353/4-17p

CEA Digitorch DX 353/4-17p 4m – wire: Ø 0,8÷1.2 – CO2 340A @60% / Mix 290A @60%

CEA Digitorch DXH 402/4-17p

CEA Digitorch DXH 402/4-17p 4m – wire: Ø 0,8÷1.6 – CO2 500A @100% / Mix 450A @100%

Push Pull Torch PP 401 D 8 m 24 V water cooled

Push Pull Torch PP 401 D 8 m 24 V - wire Ø 0,8÷1,2 water cooled (to be ordered with 031107 or 031113)

Push Pull Synchronizer 24/42V

Push Pull Synchronizer PC Board KIT 24 / 42 V (to be ordered with the Push pull torch)

CEA Torch RTX 26.4

CEA Torch RTX 26.4 4 m – 180 A 35%

50 mm² / 4 m Ground cable with clamp

70 mm² / 4 m Ground cable with clamp

Reducer with flowmeter and 1 manometer

Cea CL-1100

Cea CL-1100 cooling liquid – 5 l Tank

Dust Air Filter

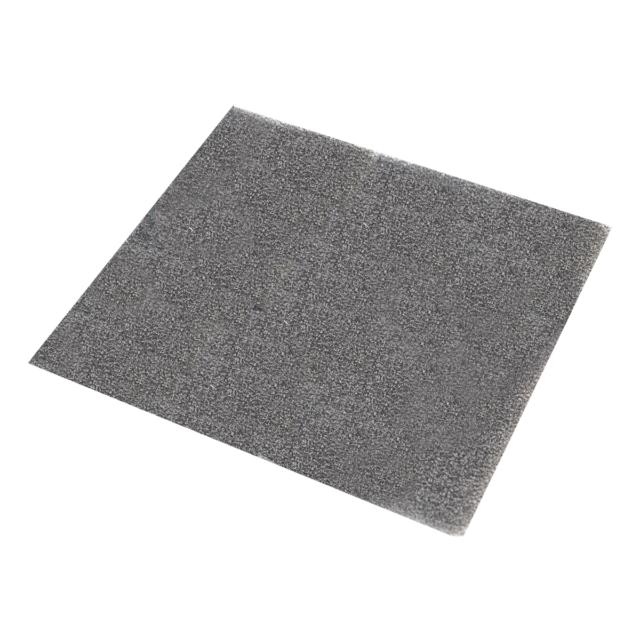

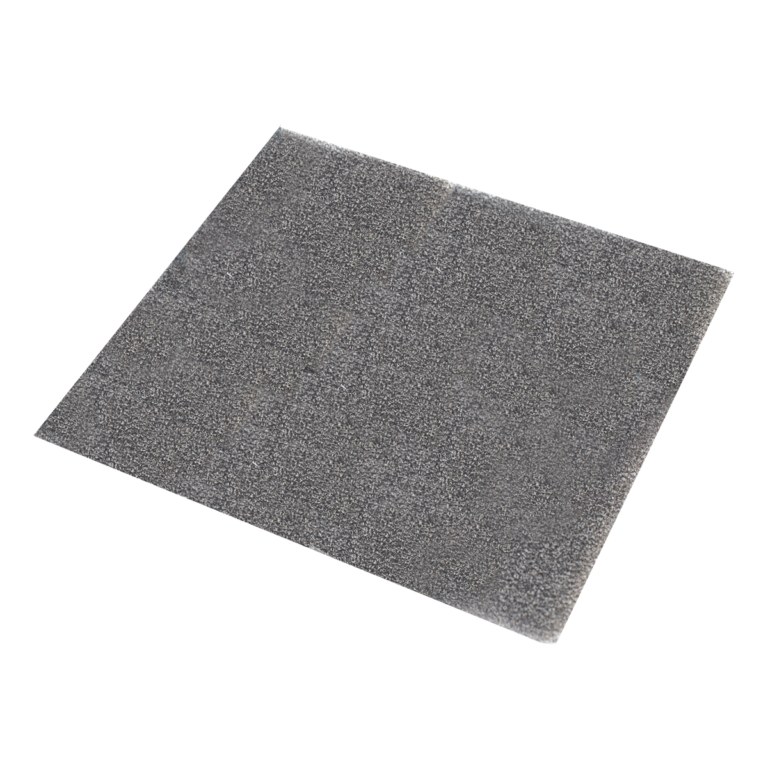

Dust Air Filter (package of 4 pcs)

RC 178

RC 178 remote control with 5 m cable

CEA Torch CXH 302/4 Up/Down-17p

CEA Torch CXH 302/4 Up/Down-17p 4m – wire: Ø 0,8÷1.2 – CO2 300A @100% / Mix 250A @100%

CEA Digitorch DXH 302/4-17p

CEA Digitorch DXH 302/4-17p 4m – wire: Ø 0,8÷1.2 – CO2 300A @100% / Mix 250A @100%

Gallery

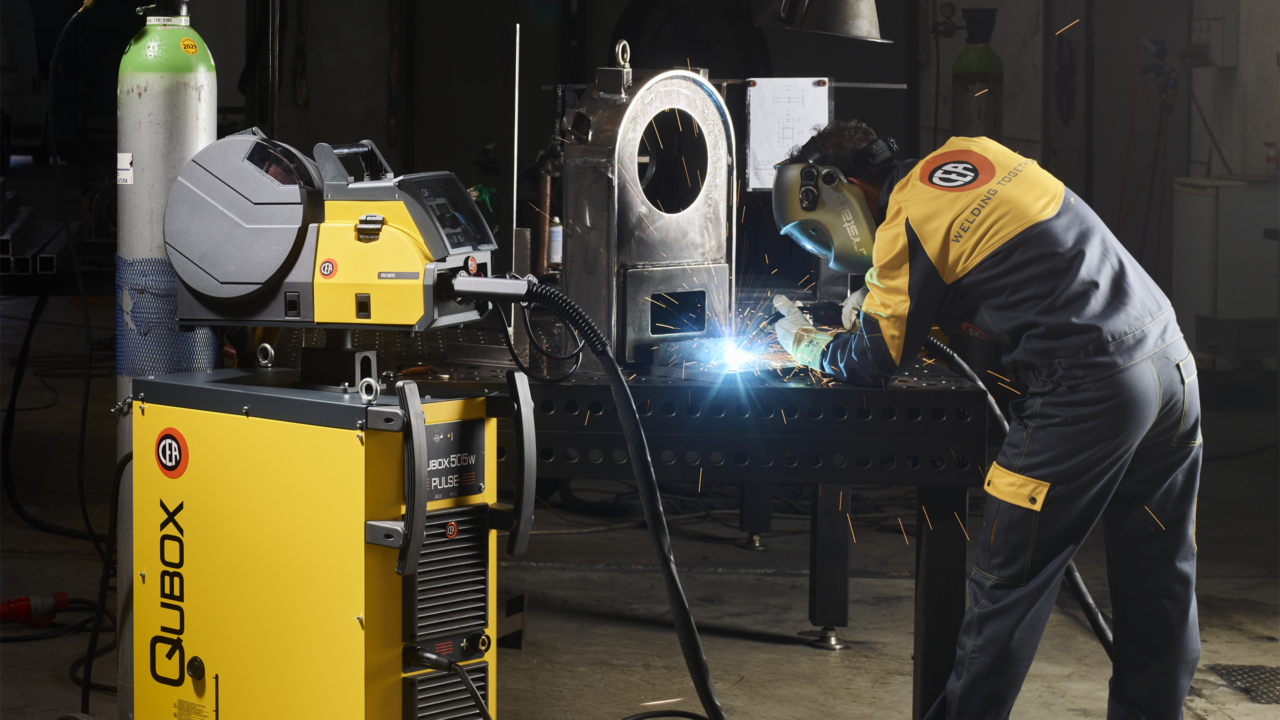

QUBOX / QUBOX PULSE at work

Datasheet

QUBOX / QUBOX PULSE: Technical features

TECHNICAL DATA			QUBOX			QUBOX PULSE
			400	400 W	500 W	335	335 W	405 W	505 W
Three phase input 50/60 Hz	V	+20% -20%	400			400
Input Power @ I₂ Max	kVA		22	22,5	29,5	18,5		22,5	29,5
Delayed Fuse (l eff)	A		32		40	20		32	40
Power Factor / cos φ			0,70/0,99		0,75/0,99	0,65/0,99		0,70/0,99	0,75/0,99
Efficiency Degree			0,88		0,89	0,88		0,88	0,89
Open circuit voltage	V		62		62	62		62	62
Current range	A		10-400		10-500	10-330		10-400	10-500
Duty cycle at (40°C)	A 100%		340		420	300		350	420
	A 60%;		400		500	330		400	500
Wires	Ø mm		0,6-1,6		0,6-1,6	0,6-1,6		0,6-1,6	0,6-1,6
Standards			EN 60974-1 • EN 60974-5 • EN 60974-10

Protection Class	IP		23S			23S
Dimensions (LxWxH)	mm		1030 x 950 x 515			1030 x 950 x 515
Weight	kg		70	80	86	70	80	80	86
