Arc welding
CONVEX MOBILE / CONVEX MOBILE PULSE
Small and powerful
MIG-MAG INVERTER PORTABLE EQUIPMENT
Powerful welding equipment in the size of just one wire feeder unit: this is the main peculiarity of CONVEX MOBILE series, innovative multiprocess synergic power sources for welding in MIG/MAG, MMA and TIG with “Lift” mode.
Versatile, easy-to-carry and user friendly, CONVEX MOBILE equipment are greatly appreciated, also thanks to their high technological conception, anywhere high quality welding is required and are ideal for on-site work, maintenance job, car body repair and light fabrication work.

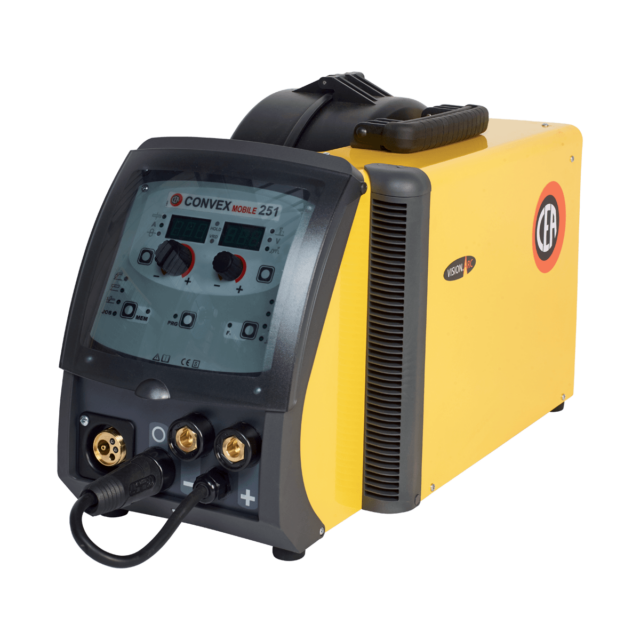

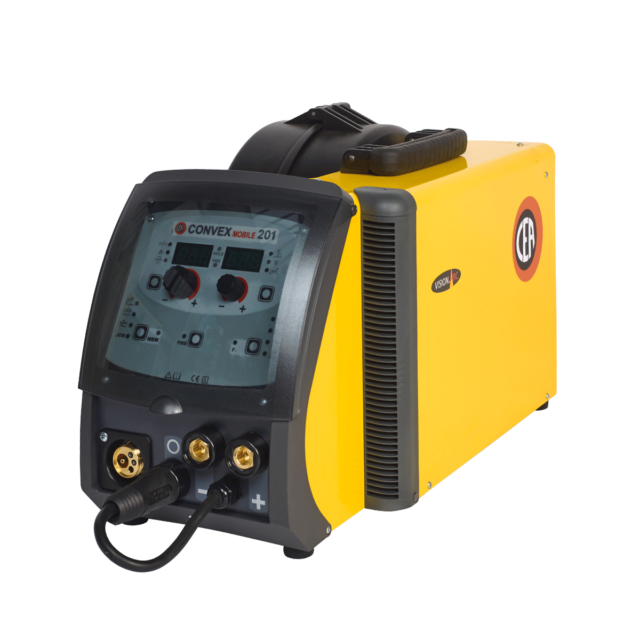

CONVEX MOBILE

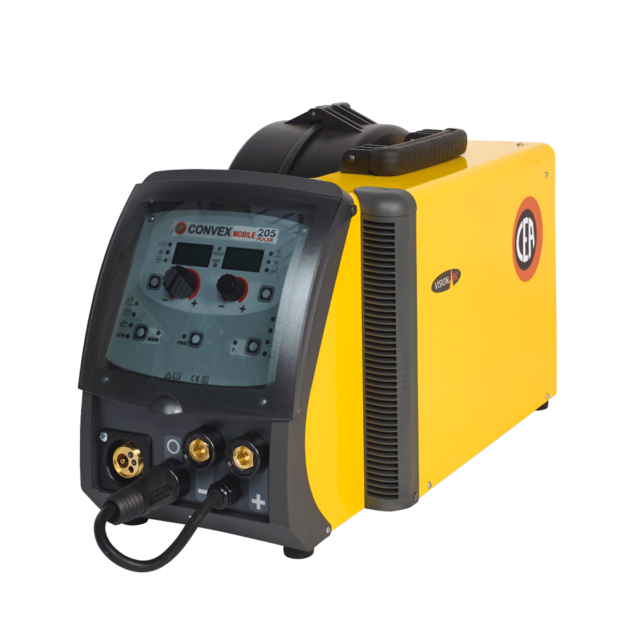

CONVEX MOBILE PULSE
Multi-process and synergic control
CONVEX MOBILE PULSE, because of its additional Pulse and Dual Pulse processes, grants high quality performance on all materials and particularly on stainless steel, zinc coated and aluminium, by greatly minimizing any reworking job caused by spatters.
Single phase version with PFC
CONVEX MOBILE 201 and 205 PULSE, with single phase input power, have PFC facility which optimizes the amount of energy consumption by allowing their use, at maximum power, on 16 A fuse mains and with power generator sets without any problems.
Other characteristics
- vision.COLD included in CONVEX MOBILE 205 PULSE – 251 – 255 PULSE
- Built-in polarity changeover feature for most common gas and gasless wires
- Suitable for Ø 300 mm wire spools
- Professional double groove feeding mechanism with 4 rolls of Ø 37 mm.
- “Energy saving” function to operate the power source cooling fan only when necessary
- Possibility to use Up/Down torches
- Trouble shooting auto-diagnosis feature
- Initial and final crater control
- VRD – Voltage Reduction Device
Technical features
Available accessories
Discover all available accessories
Cea CL-1100
Cea CL-1100 cooling liquid – 5 l Tank
Trolley CT 401
Trolley CT 401 with 4 rolls for power source, cooling equipment and cylinder
Adaptor support plate for CONVEX MOBILE
Adaptor support plate for CONVEX MOBILE mounted on CT 400

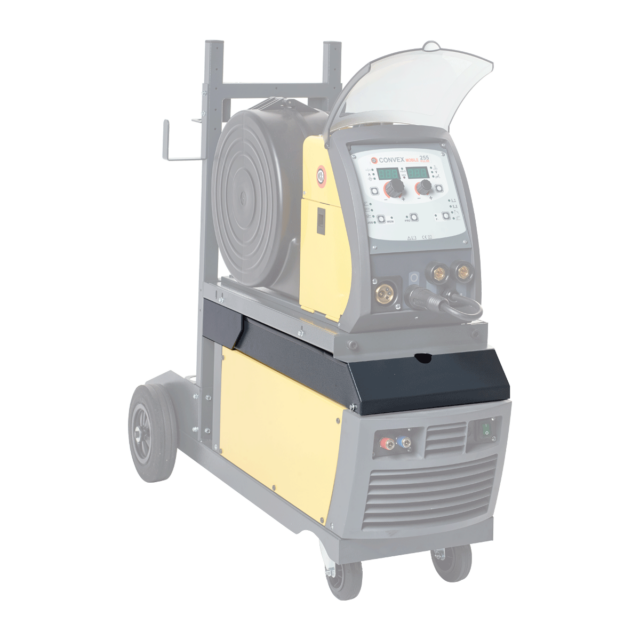

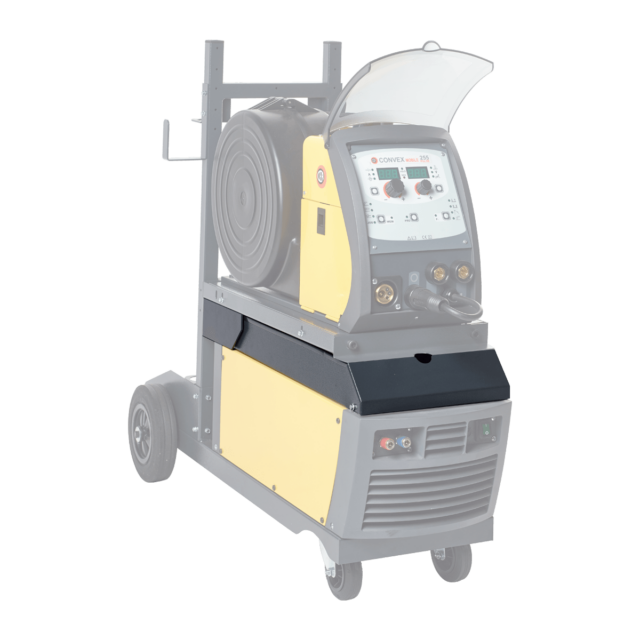

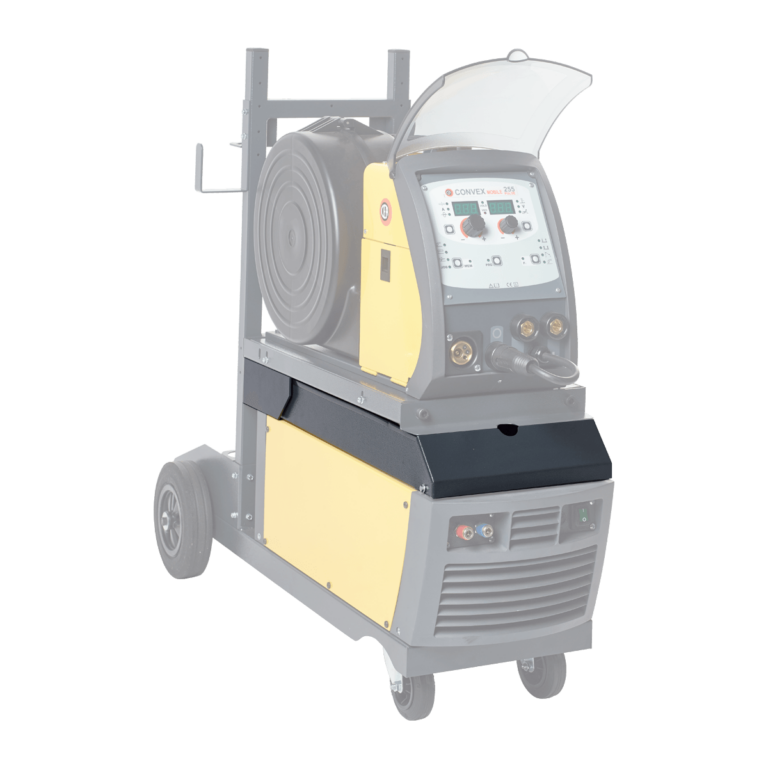

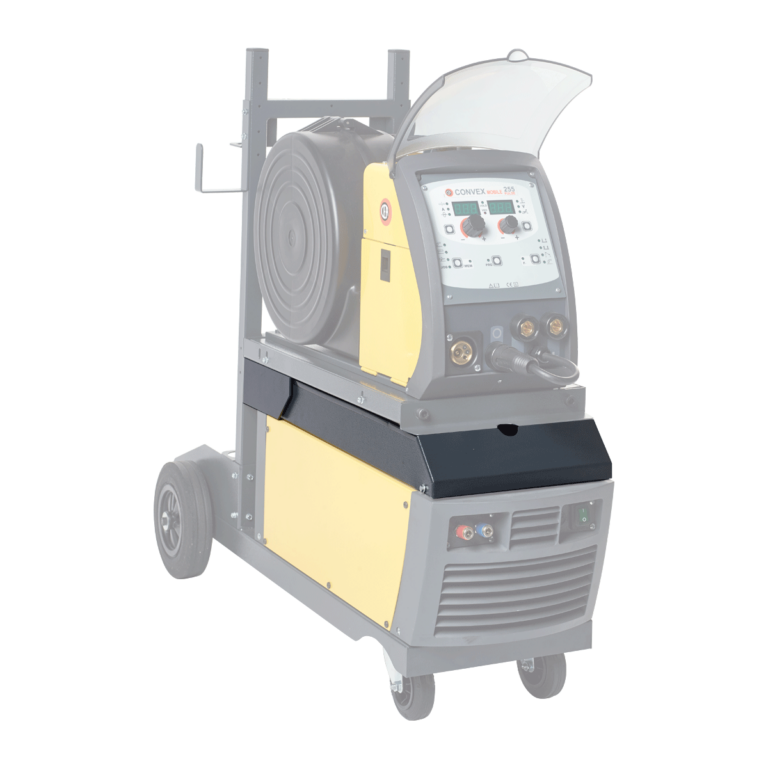

Accessory BOX kit
Accessory BOX kit (To be ordered only with HR 32 / 30)
WK 2 extra-large wheel kit
WK 2 extra-large wheel kit
CEA Torch CX 251/3
CEA Torch CX 251/3 3 m wire Ø 0.6÷1.0 CO2 260A @60% / Mix 200A @60%
CEA Torch CXH 302/4
CEA Torch CXH 302/4 4 m wire Ø 0.8÷1.2 water cooled CO2 300A @100% / Mix 250A @100%

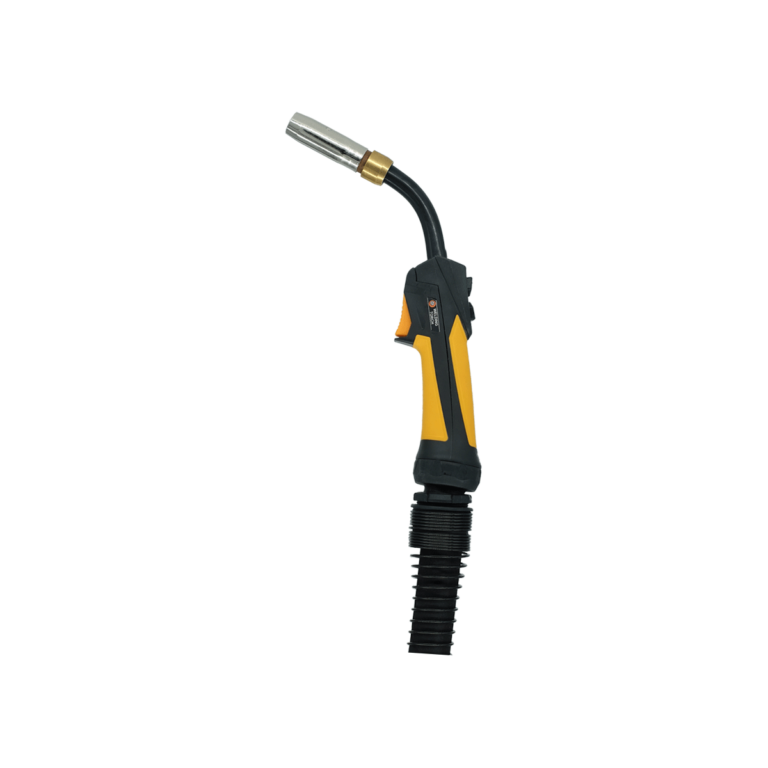

CEA Torch CXH 302/4 Up/Down-6p
CEA Torch CXH 302/4 Up/Down-6p 4m – wire: Ø 0,8÷1.2 – CO2 300A @100% / Mix 250A @100%
CEA Torch CX 353/4 Up/Down-6p
CEA Torch CX 353/4 Up/Down-6p 4m – wire: Ø 0,8÷1.2 – CO2 340A @60% / Mix 290A @60%
CEA Torch RTX 26.4
CEA Torch RTX 26.4 4 m – 180 A 35%
35 mm² / 4 m Ground cable with clamp
35 mm² / 4 m Ground cable with clamp
Reducer with 2 manometers
Reducer with 2 manometers
Reducer with flowmeter and 1 manometer
Reducer with flowmeter and 1 manometer
Gallery

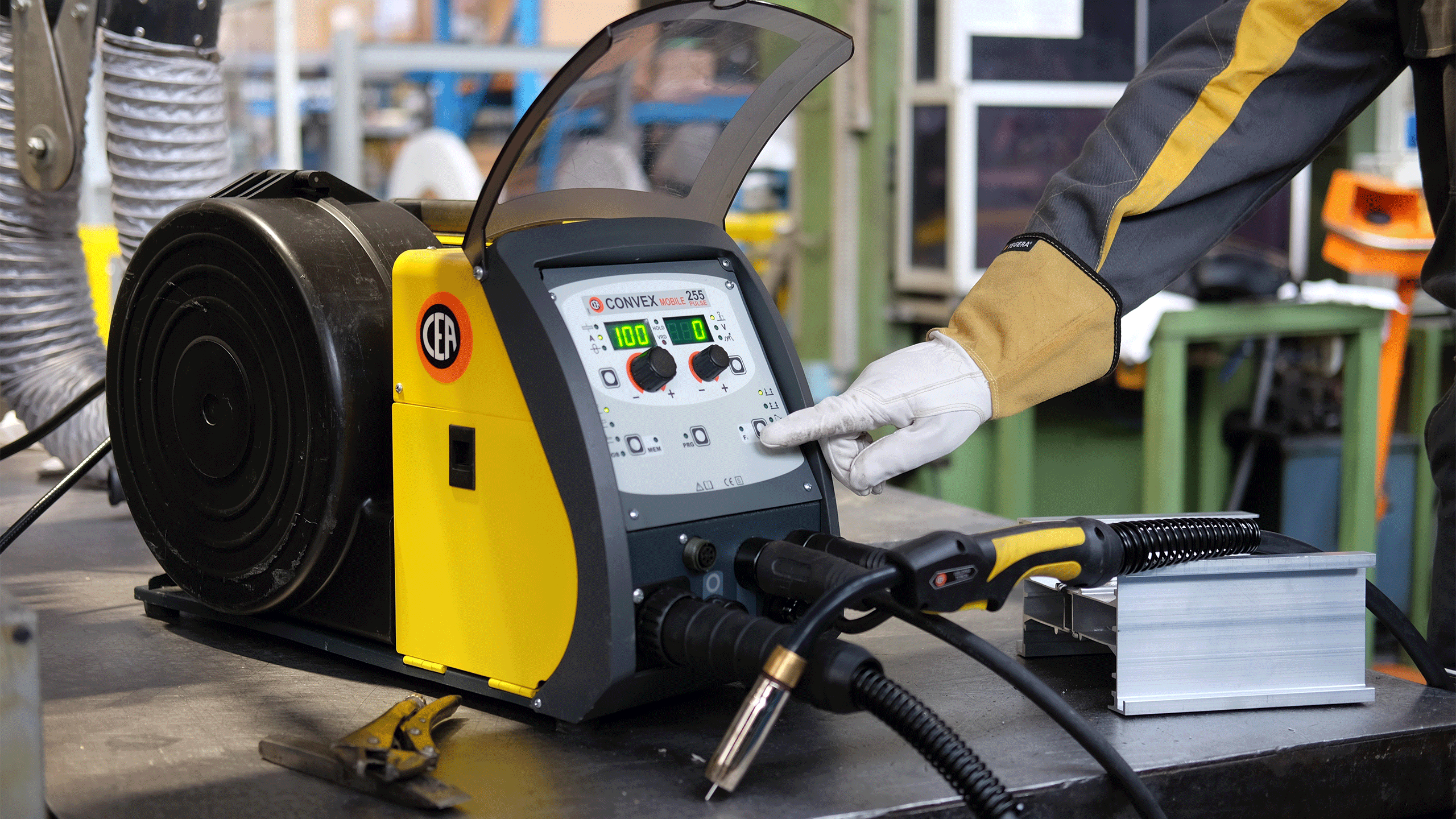

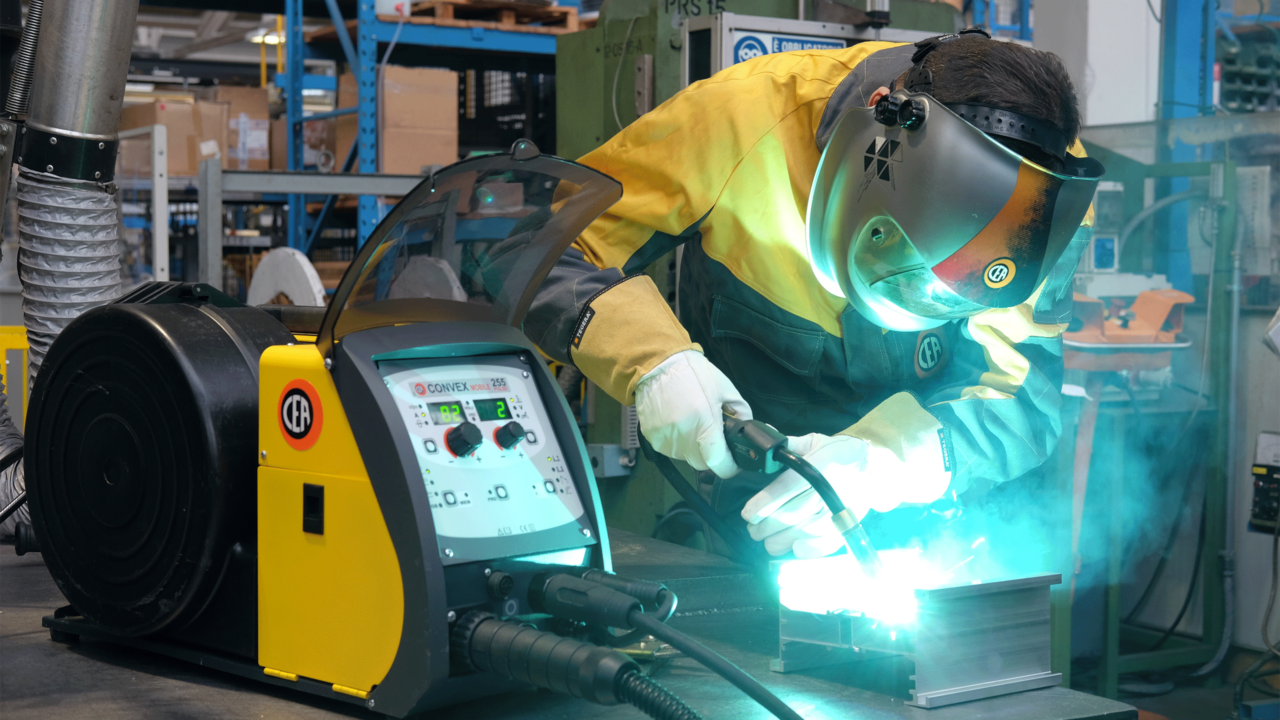

CONVEX MOBILE / CONVEX MOBILE PULSE at work
Datasheet
CONVEX MOBILE / CONVEX MOBILE PULSE: Technical features
| TECHNICAL DATA | CONVEX MOBILE 201 / CONVEX MOBILE 205 PULSE | CONVEX MOBILE 251 / CONVEX MOBILE 255 PULSE | ||||||
| MIG/MAG | TIG | MMA | MIG/MAG | TIG | MMA | |||
| Single phase input 50/60 Hz | V | +15% -15% |
230 | – | ||||
| Three phase input 50/60 Hz | V | +15% -15% |
– | 400 | ||||
| Input Power @ I2 Max | kVA | 6 | 4,6 | 7,1 | 10 | 8,5 | 11 | |
| Delayed Fuse (l eff) | A | 16 | 16 | 16 | 16 | 10 | 16 | |
| Power Factor / cos φ | 0,95/0,99 | 0,95/0,99 | 0,95/0,99 | 0,74/0,99 | 0,69/0,99 | 0,77/0,99 | ||
| Efficiency Degree | 0,84 | 0,89 | ||||||
| Open circuit voltage | V | 45 | 45 | 45 | 60 | 60 | 60 | |
| Current range | A | 10-200 | 5-200 | 10-200 | 10-250 | 5-250 | 10-250 | |
| Duty cycle at (40°C) | A 100% | 105 | 105 | 105 | 180 | 180 | 180 | |
| A 60% | 140 | 140 | 140 | 200 | 200 | 200 | ||
| A X% | 200(25%) | 200(25%) | 200(25%) | 250(35%) | 250(35%) | 250(35%) | ||
| Wires | Ø mm | 0,6-1,2 | — | — | 0,6-1,2 | — | — | |
| Coil | Ø mm | 300 | — | — | 300 | — | — | |
| Standards | EN 60974-1 • EN 60974-5 • EN 60974-10 | |||||||
 |
||||||||
| Protection Class | IP | 23S | 23S | |||||
| Dimensions (LxWxH) | mm | 650 x 300 x 388 | 650 x 300 x 388 | |||||
| Weight | kg | 20 | 21 | |||||
